Container Accessories in Alberta, Saskatchewan, and British Columbia
#6067 INSTA VENT
Specs • 13 gauge steel construction • 14” H x 14” W x 9” D / 355mm x 355mm x 228mm • 8.5 lbs. / 4 kg • Screen: 6” H x 9” W / 152.4mm x 228.6mm • Powder coated dark gray Features • Easy to install in under 30 minutes • Integrated bug screen • Super strong to avoid damage from impacts • Prevents moisture buildup and hazardous fume accumulation • Prevents moisture build-up and hazardous fume accumulation •Easy to install. Strong and secure • Bug screen included. Bolt-on or weld-in application • Install on the side or end of the container • Can also be installed on the container door Other Options • #6067 ZP INSTA Zinc Plated Vent • #6070 INSTA Manufacture Replacement Vent
#6068 LV INSTA LOUVERED VENT
• 17” H x 13” W x 2.8” D / 432 x 330 x 71mm • 16-gauge steel construction (0.06” thick) • Low profile design / integrated pest screen • 1.5” flange all around including top & bottom • 4.5x the air transfer compared to our #6067 • 5.0 lbs (2.3 kg) / installs in under 30 minutes • Powder-coated dark grey, white, or orange
#7102 120V AC POWER PORTS
• Transfer power from outside your container to inside • Useful for power tools & lighting / durable for industrial use • Install in under 30 minutes / hardware included • 14-gauge wire, rated for 15 amps • 19.7” (0.5m) overall length
#8080 INSTA SOBO BLOCK LOCK
Specs • 3 3/16” / 80mm tall body • 1.4 lbs. / 0.64kg • Solid brass body • Triple chrome plated • Brass and stainless steel internal mechanics Features • Freely rotating shackle resists cutting • D-lock / jimmy proof padlock style • No spring loaded parts • Comes with four keys • Key retainer ensures it’s never left unlocked Options • Keyed alike - KA • Keyed different - KD
#6061 #6062 INSTA RHINO DOOR
Specs • 16-gauge steel door • Door size: 3’4” W x 6’4” H / 101.6cm x 193cm • Including frame: 3’9” W x 6’9” H / 114.3cm x 205.7cm • Door thickness: 1 3/4” / 44.5mm • 13-gauge box frame • 6-gauge mounting flange •185 lbs. / 84 kg Features • 4 heavy-duty hinges • Accepted by all North American hardware (sold separately) • Easy bolt-on application • Door reinforced inside with steel tubes • Insulated for 90-minute fire rating • Baked enamel finish • Available in right or left hand Accessories • #6044 INSTA Rhino Door Design Handle • #4184 INSTA Container Door Extension Plate
#6044 INSTA RHINO DOOR DESIGN HANDLE (X-82-F-US26D)
Specs • Steel lock chassis with zinc dichromate coating for corrosion resistance • 5” (127 mm) solid zinc diecast levers • 3 3/8” (85.73 mm) wrought brass rose Features • Meets and exceeds ANSI – A156.2, Series 4000, Grade 1 standards • Meets ADA and ANSI A117.1 accessibility codes • Clutched lever system for vandal resistance on locking functions • Anti-sag mechanism with independent lever return springs • Non-handed – completely reversible • Hardware and 2 keys included Option • #6045 INSTA Rhino Door Design Handle Without Key
#3210 INSTA 3-SHELF BRACKET
• 60” H x 21” W / 1.52 m x 0.53 m • 10.5 lbs. / 4.8 kg per bracket • 18.5” / 470 mm deep shelf • Rated for 550 lbs. (250 kg) per bracket arm • Rated for 2200 lbs. (1 ton) shelf load capacity with (2) #3210 INSTA 3-shelf Brackets Features • Hooks onto container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves • Wood shelves not included Other Options • See products 3210R, 3212, 4210, 4212R, and 4000C for different shelving options.
#4210 INSTA 4-SHELF BRACKET
Specs • 60” H x 21” W / 1.52 m x 0.53m • 84” H x 21” W / 2.13 m x 0.53 m • 12.5 lbs. / 5.6 kg • 18.5” / 470 mm deep shelf • Rated for 550 lbs. (250 kg) per bracket arm • Rated for 2200 lbs. (1 ton) shelf load capacity with (2) #4210 Insta 4-shelf Brackets Features • Hooks to container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves • Wood shelves not included • Two heights available: 60” and 84” Other Options • See products 3210, 3210R, 3212, 4212R, and 4000C for different shelving options.
#3212 INSTA 3-SHELF BRACKET (DEEP)
Specs • 60” H x 25” W / 1.52 m x 0.64 m • 22.5” / 570 mm deep shelf • 12.5 lbs. / 5.6 kg per bracket • Rated for 550 lbs. (250 kg) per bracket arm • Rated for 2200 lbs. (1 ton) shelf load capacity with (2) #3212 INSTA 3-shelf Brackets Features • Hooks onto container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves • Wood shelves not included Other Options • See products 3210, 3210R, 4210, 4212R, and 4000C for different shelving options.
#3210R INSTA RHINO 3-SHELF BRACKET
Specs • 60” H x 21” W / 1.52 m x 0.53 m • 18.5” / 470 mm deep • 16 lbs. / 7.25 kg per bracket • Rated for 550 lbs. (250 kg) per bracket arm • Rated for 2200 lbs. (1 ton) shelf load capacity with (2) #3210R Insta 3-shelf Brackets Features • Hooks onto container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves • Wood shelves not included Other Options • See products 3210, 3212, 4210, 4212R, and 4000C for different shelving options.
#4212R INSTA RHINO 4-SHELF BRACKET (DEEP)
Specs • 84” H x 24” W / 2.13 m x 0.61 m • 22.5” / 570 mm deep • 22 lbs. / 10 kg per bracket • Rated for 550 lbs. (250 kg) per bracket arm • Rated for 2400 lbs. (1.2 tons) shelf load capacity with (2) #4212R Insta 4-shelf Brackets Features • Hooks onto container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves • Wood shelves not included Other Options • See products 3210, 3210R, 3212, 4210, and 4000C for different shelving options.
#4000C INSTA PIPE RACK
Specs • 66” H x 17.5” W / 1.68 m x 0.45 m • 12 lbs. / 5.5 kg per bracket • 16” / 406 mm deep shelf • Roll stop tabs for safety • Gusseted arms for strength • Rated for 2000 lbs. (907 kg) shelf load capacity with (2) #4000C Insta Pipe Racks Features • Hooks onto container D-rings • No bolting or welding to container • No damage to container when uninstalled • Unobstructed storage space under shelves Other Options • See products 3210, 3210R, 3212, 4210, and 4212R for different shelving options.
#3213 INSTA BOLT-ON D-RINGS
#3213 INSTA BOLT-ON D-RINGS Specs • Three (3) D-rings per box • Six (6) x 5/16” hardened self-threading bolts • Three (3) x ¼” self-tapping screws Features • Bolt-on application • No welding required • Laser cut • Powder coated •Mounting hardware included Related Products • See products 3210, 3210R, 3212, 4210, 4212R, and 4000C for different shelving options.
#6070 INSTA MANUFACTURE REPLACEMENT VENT (SMALL)
Specs • 8 1/16” H x 2 5/8” W x 1” D (205mm x 66.2mm x 25mm) • Made of plastic Features • Available in grey • Easy bolt-on application, pre-drilled holes match existing holes in container • Gasket seal included Accessories • N/A
#6020 INSTA DIVIDER WALL
Specs • 16-gauge steel construction • 90” H x 44” W / 2.29m x 1.12m • 130 lbs. / 54.43 kg per section Features • Corrugated steel • Four (4) pressure-fitted feet to fit into container wall corrugations • No welding required • Leaves no trace behind when uninstalled Accessories • #6024 INSTA High-Cube Enclosure Panels • #6019 INSTA Divider Wall 93” Height
#6066 INSTA 3’X3’ WINDOW
Specs • 14 gauge steel frame • Frame: 40” W x 40” H / 1m x 1m • 130 lbs. / 59 kg • Dual pane thermal PVC window Features • Fold down security screen for easy exit • Easy to open window • Sliding bug screen • Bolt-on or weld-in • Drip plate included Accessories • N/A
#6066 INSTA 3’X4’ WINDOW
Specs • 9-gauge steel frame • Frame: 3’ H x4’ W / 0.91m x 1.22m • Superior quality dual-pane PVC window • 125 lbs. / 56.7 kg Features • Sliding bug screen • Bolt-on or weld-in • Drip plate included Accessories • #6064 INSTA Window Drip Plate Extension (for high-cube containers) • #6065 INSTA Security Window Screen
#6200 INSTA TWIST LOCK
Specs • 10.25 lbs. / 4.65kg • Safe working load tension 250 kilonewtons or 56,000 lbs. (25.5 tons) • Breaking load of 50 tons Features • High-quality casted steel construction • Heat-treated galvanized finish • Double-ended design to connect two containers Accessories • N/A
#6202 INSTA TWIST LOCK - DECK MOUNT
Specs • 14.50 lbs. / 6.6kg • 140mm W x 174mm H • Breaking load of 50 tons Features • High-quality cast steel construction • Heat-treated galvanized finish Accessories • N/A
#4187 INSTA 3” CONTAINER SWIVEL CASTER WHEEL
Specs • 8” / 203 mm diameter • 3” / 76 mm width wheel • 3 tons / 6,600 lbs. rating/per caster Features • Brake included • Twist-lock mechanism Accessories • N/A
#4188 INSTA 2.75” CONTAINER CASTER WHEEL
Specs • 1 ton / 2,200 lbs. rating/per caster • 6” / 152-mm diameter • 2.75” / 70-mm width wheel Features • No brake Accessories • N/A
#6074 INSTA STEEL SLAT ROLL-UP DOOR
Specs • 84” / 2.13 m width • 1/6” / 0.4 mm thickness Features • Available in white steel • Aluminum rails and hardware included • Corrugated roll shutter for added strength and wind resistance Accessories • #6080 INSTA Door Kit for Steel Slat Roll-up Door
#6072 INSTA ALUMINUM SLAT ROLLSHUTTER DOOR
Specs • 72” W x 103” H / 1.83 m x 2.61 m Features • Built-in handle • Rekeyable lock • Heavy-duty box housing • Insulated aluminum slats • Aluminum rails and hardware included Accessories • N/A
#4340 INSTA LAGER PLANNING/DRAFTING TABLE SET
Specs • Rated for 400 lbs. (181 kg) per bracket arm • Rated for 1200 lbs. (544 kg) per bracket • Two (2) x #4210 InstaLager Vertical Tube 48” / 1225 mm • Two (2) x #4220 InstaLager Horizontal Tube 15.75” / 400 mm • Two (2) x #4218 InstaLager Horizontal Tube 22” / 560 mm • Four (4) x 4360 Bolt Bag “A” • Four (4) x #4345 InstaLager Connecting Plate/Sloped • Four (4) x #4347 InstaLager Connecting Plate Features • Durable baked enamel paint finish • All hardware included • Easy to assemble • Wood not included Accessories • #4234 INSTA Lager Container Modification Kit • #4348 INSTA Lager Angle Block

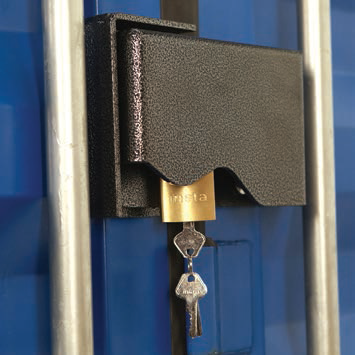

#3240 #3241 INSTA LOCK BOX
Specs •4-gauge steel construction •10.5” L x 7.75” H x 3” W / 26.7cm x 19.7cm x 7.6cm •12.3 lbs. / 5.5 kg •Powder-coated dark grey Features •Bolt-on application •No welding •Integrated ‘Wave’ design •Available in right or left hand •Mounting hardware and drill template included Accessories •#6850 INSTA Pad Lock Pro Series •#8080 INSTA Sobo Block Lock •#6850 Master Lock Pad Lock
#3233 INSTA PUCK LOCK BOX
Specs • 4-gauge steel construction • 10.5” L x 7.75” H x 3” W / 26.7cm x 19.7cm x 7.6cm • 12.3 lbs. / 5.5 kg • Powder-coated dark grey Features • Bolt-on application • No welding • Integrated ‘Wave’ design • Mounting hardware and drill template included Accessories • #6272 INSTA Puck Lock Pro Series • #6271 Master Lock Puck Lock
#6850 INSTA PAD LOCK PRO SERIES
Specs • 2” / 51mm brass body • 1½” / 38mm tall • 3/8” / 9mm diameter hardened boron alloy shackle • 5-pin cylinder Features • Heavy-duty brass body • Superior cut-resistance • Rekeyable cylinder with nickel-plated keys Options • Keyed alike - KA • Keyed different - KD
#6272 INSTA PUCK LOCK PRO SERIES
Specs • 2 7/8” / 73mm wide reinforced die cast body • 3/8” / 9mm diameter boron alloy shackle • 6-pin cylinder Features • Lock shackle completely protected • Superior cut resistance Options • Keyed alike - KA • Keyed different - KD

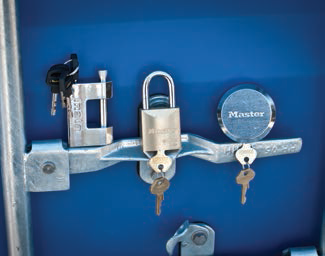

#6271 #6850 MASTER LOCK PAD AND PUCK LOCKS
6850 Pad Lock • 2” / 51mm brass body • 1½” / 38mm tall • 3/8” / 9mm diameter hardened boron alloy shackle • 5-pin cylinder 6271 Puck Lock • 2 7/8” / 73mm wide reinforced die-cast body • 3/8” / 9mm diameter boron alloy shackle • 6-pin cylinder Features • Rekeyable Options • Keyed alike - KA • Keyed different – KD
#6010 INSTA DIVIDER WALL
Awarded “Best Innovation” at NPSA Convention! • Install or remove in less than 20 minutes • Requires no welding or bolting • Corrugated steel for added strength and security • Tough powder coat exterior • Very popular with the self-storage industry
#6062 INSTA RHINO DOOR
10 years in the making. This is a true Rhino door! • Heavy-duty box frame and four hinges • 16-gauge galvanized steel. Insulated and fire-rated • Designed for bolt-on and weld-in applications • Forget the hassle, simply cut the opening and install
#6066 INSTA WINDOW
Security and safety are key! • Heavy-duty construction dual-pane window • Designed for bolt-on or weld-in application • Fold open security screen for an easy emergency exit • Sliding bug screen
#6200 INSTA TWIST LOCK
Securely connects two containers! • Superior quality. Galvanized, heat-treated cast steel • Re-designed flat handle for added strength • Double-ended engineered design for two-container-connection
#4000C INSTA PIPE RACK
Pipes, conduit, lumber, you name it! • Perfect for horizontal storage options both, inside and outside the container • Easily hooks to D-rings and can be moved and re-installed • Keeps floor space free for additional storage and ease of cleaning • Strong and secure. 1000 lbs. load rating/per two racks • Engineered and load tested
INSTA #7102 WITH DUAL FEMALE OUTLETS
6220 INSTA GUARD MOISTURE TRAP
•Designed to preserve space by fitting within container side wall corrugations •Materials: calcium chloride in a plastic sleeve •Life span: 12-14 weeks (depending on level of humidity) •Working temperature: 15º to 70ºC (60º to 158ºF)
